Custom Polycarbonate Sheet Engraving & Bending for Machine Parts

Basic Info.

Model NO.	SH-SS-P44
Customized	Customized
Usage	Internal and Exterior
Color	Multi Color
Surface Finishing	Finished
Quality Assurance	≥10 Years
UV Protection	50um~80um
Certification	SGS, RoHS, ISO9001, CNAS
Main Technology	Carving, Bending, Hot Forming, Drilling, Printing
Brand of Raw Material	Covestro, Sabic
Width	0~2100mm
Length	Customized
Thickness	1.0mm~20mm
Transport Package	Wrapping PE Film, Kraft Paper, Carton, Pallet
Specification	Processing Polycarbonate
Trademark	PolyWell
Origin	China
HS Code	3920610000
Production Capacity	6000 Tons/Year

Product Description

PolyWell® Polycarbonate Solid Sheet has the characteristics of high transparency, light weight, high strength, sound insulation, heat insulation, inflammable and anti-aging. It is a kind of environmental protection plastic sheet with excellent comprehensive performance. It also has excellent dimensional stability, suitable for a variety of processing technology. Its processed products are widely used in industry, construction, automobile, lighting, security, electronics and other industries.
PRODUCT ADVANTAGES
* High light transmittance* High impact strength* Strong weatherability* Light weight* Good flame retardancy* Good thermal insulation* Fine plasticity* Good processability
SPECIFICATIONS
*Thickness range: 1.0mm~20mm (Mainly 2mm/3mm/4mm/6mm/8mm/10mm/12mm/15mm)*Width: Max. 2100mm(1220/1560/1820/2100mm/customized)*Length: 2440mm/ 30 meters per roll/ customized*Standard Size: 1220*2440mm, 2000*3000mm*Color: Transparent(clear), brown, opal white, grey, black, lake blue, blue, green, customized
TECHNICAL DATA

FEATURES	TEST METHOD	TEST CONDITION	UNIT	DATA
Density	D-792		g/cm3	1.2
Heat Deflection Temperature	D-648	Load:1.82 MPa	ºC	135
Short-term Service Temperature			ºC	-50~+120
Long Service Temperature			ºC	-50~+100
Linear Expansion Coefficient	D-696		cm/cmºC	6.5x10-5
Thermal Conductivity	C-177		W/m K	0.21
Yield Tensile Strength	D-638	10mm/min	Mpa	62
Tensile Strength at Break	D-638	1mm/min	Mpa	65
Yield Elongation	D-638	10mm/min	%	6
Elongation at Break	D-638	10mm/min	%	>70
Elastic Tensile Modulus	D-638	1mm/min	Mpa	2300
Bending Strength	D-790	1mm/min	Mpa	93
Flexural Modulus	D-790	1.3mm/min	Mpa	1890
Shock Drop	(ISO 6603/1 E50)	0.8mm sheet	J	50
Rockwell Hardness	D-785		R Scale	118
Light Transmittance	D-1003	Transparent	%	90%
Haze	D-1003	Transparent	%	<0.5
Yellowing Index	D-1003	Transparent	YI	<1

* ALL <ASTM> UNLESS OTHERWISE NOTED.

FEATURES
1) Good light transmission: reaches 12%- 92% depend on color and thickness2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet3) Weather resistance: applicable temperature -40°C ~+120°C4) Flame resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A5) Light weight and easy installation: 1/2 of glass based on the same thickness6) Ultraviolet resistance: 50um~80um one side or both sides anti-UV coating7) Sound insulation and noise reducing: 5mm sheet attenuate 23db, 10mm sheet attenuate 35db8) Heat insulation: heat Conductivity - 0.2 W/m2· K9) Fine plasticity: Suitable for processing such as: carving, drilling, cutting, bending, hot forming, printing...
PRODUCT SHOW

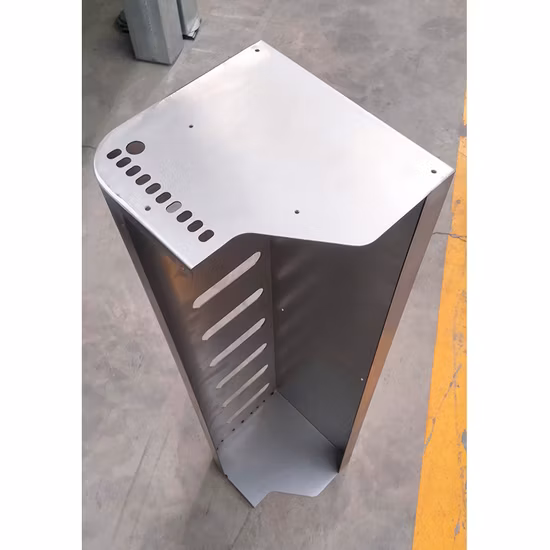

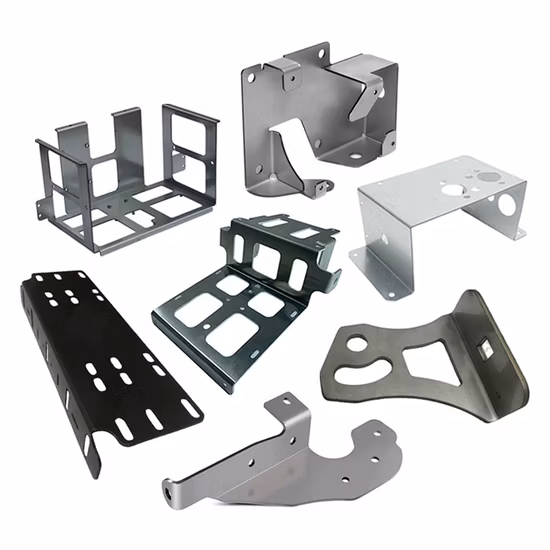

MACHINING PARTS
PRODUCT CATEGORIES

TYPICAL APPLICATIONS
1) Unusual decorations, corridors and pavilions in gardens and recreational and rest places; 2) Interior and exterior decorations of commercial buildings, and curtain walls of the modern urban buildings; 3) The transparent containers, front wind shields of motorcycles, airplanes, trains, ships, vehicles, motor boats, sub marines; 4) Advertising light box, telephone booths, street name plates and sign boards; 5) Instrument and war industries - windscreens, army shields;6) Lighting materials, walls, roofs, windows, screens, skylight and other high quality indoor decoration materials; 7) Sound insulation shields(acoustic barrier) on express ways and city overhead highways; 8) Agriculture greenhouses and sheds; Ceiling material for awnings, canopy, carport, balcony.9) Security products - shield, helmet, fences for bus and taxi drivers, protective cover and viewing window for industrial equipments;
PROCESSING SERVICE

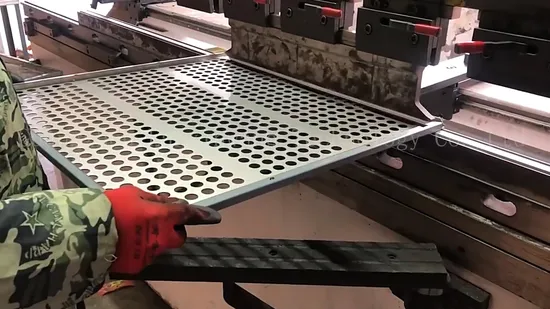

We can provide professional customized plastic sheet processing services, including machining, carving, laser cutting, saw cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing and so on. Welcome to provide drawings or samples, communicate and confirm the processed products.
